Stay in control of your vehicle with this compact and powerful 4-channel mobile DVR system, designed for real-time monitoring, recording, and remote access. Perfect for cars, trucks, buses, and commercial vehicles, this system gives you full visibility with split-screen viewing and GPS tracking.

The 7-inch multi-view display allows you to monitor up to 4 cameras at once, while built-in DVR recording ensures everything is captured and stored automatically.

With a 2 Year Australian backed warranty & expert tech support, we're here to help!

Key Features:

✔ 4-Channel Split Screen Viewing – Monitor multiple camera angles at once
✔ Real-Time Recording (DVR) – Continuous loop recording with SD card support
✔ GPS Tracking + Remote Monitoring – View footage live from your phone or computer
✔ Night Vision Cameras – Clear visibility in low-light conditions
✔ Wide Voltage Support (8–36V) – Suitable for cars, trucks, buses & heavy vehicles

System Overview:

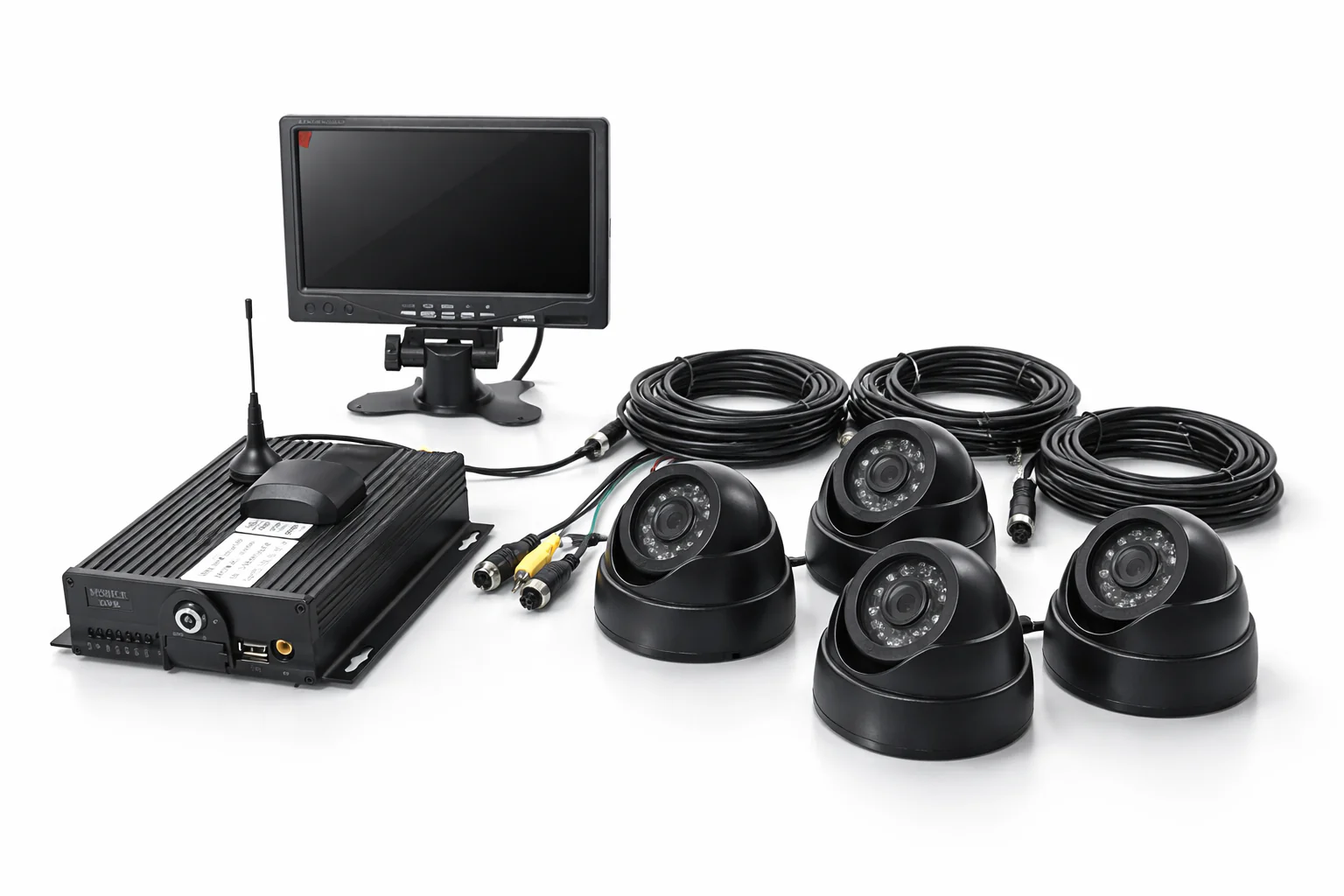

This system connects up to 4 cameras to a central DVR unit, allowing:

Live viewing on the included 7" display
Remote access via mobile app (CMSV6)
Playback and monitoring from a computer

Ideal for:

Fleet vehicles
Trucks & transport
Buses & vans
Security monitoring

Specs:

Display

Screen Size: 7 Inch
Resolution: 800 × 480
Display Ratio: 4:3
Brightness: 200 cd/m²
Contrast Ratio: 400:1
Response Time: 10ms
Panel Type: TFT LCD (LED Backlight)

DVR System

Channels: 4 Channel Input
Video Compression: H.264
Recording: Loop Recording (SD Card)
Storage: Supports Dual SD Cards (up to 256GB each)
App: CMSV6 (Mobile Monitoring)

Camera

Resolution: 1080P HD (2.0MP)
Lens: 2.8mm
View Angle: 115°
Night Vision: Yes
IR Distance: 12–20m
Sensor: CMOS

Connectivity & Features

3G / 4G + GPS Support
RJ45 Network Port
AV Input / Output
USB Port
SIM Card Slot
VGA Output

Power

Input Voltage: DC 8V – 36V
Standard Supply: DC 12V

Build & Compliance

Certifications: CE, FCC, RoHS
2 Year Australian Warranty
